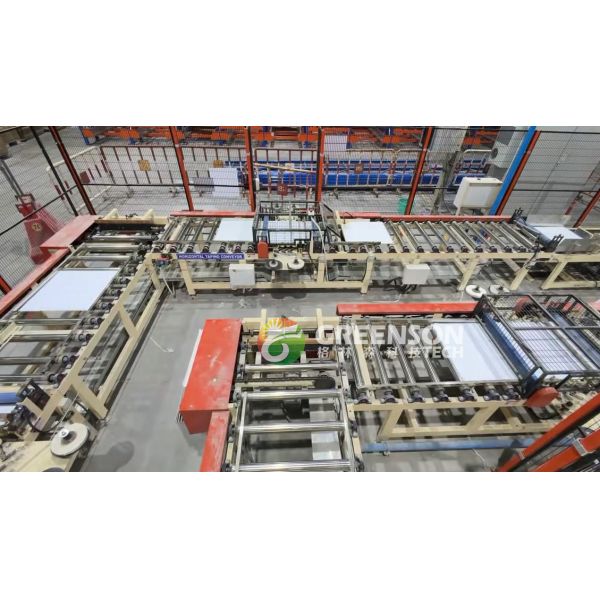

PVC Laminated Fiber Cement Board Making Machine with 1300mm Effective Laminating, PLC System, and 2-6 Million Sq.m/Year Production Capacity

Brand Name : LVJOE

Model Number : 1300FM

Certification : ISO CE

Place of Origin : Hebei，China(Mainland)

MOQ : 1 line

Price : US $20000-200000

Payment Terms : L/C,T/T

Supply Ability : 10 lines per Year

Delivery Time : 2 Months

Packaging Details : Standard packing

Product Name : Pvc Laminated Fiber Cement Board Making Machine

Keyword : ceiling tiles making machine

Finished board type : PVC laminated gypsum board

Effective laminating : 1300mm

electric control : PLC system

Production Capacity : 2-6 million Sq.m/year

After-sales Service : Engineers available to service

Glue type : Water Glue for PVC film

Contact Now

Pvc Laminated Fiber Cement Board Making Machine
Product Overview

This advanced double side laminating machine is designed for producing PVC laminated gypsum boards used as ceiling tiles and partition wall panels. The fully automatic system handles fiber glass, paper, PVC film, and aluminum foil lamination with precision and efficiency.

Key Specifications
Attribute Value
Finished board type PVC laminated fiber cement board
Effective laminating width 1300mm
Electric control PLC system
Production Capacity 2-6 million Sq.m/year
Speed 2-15m/min (adjustable)
After-sales Service Engineers available to service
Warranty 1 year
Glue type Water Glue for PVC film
Main Components
Automatic Gypsum Board Feeding Machine

The cylinder pushes gypsum boards from the stack lift platform to the conveyor roll for PVC and aluminum film lamination.

Max. Load-bearing: 3000kg
Stroke: 1500mm
Height range: 620mm - 2000mm
Platform size: 1200×2400mm
Automatic Cutting Machine

Features two cutting systems (vertical/longitudinal and horizontal) with dust collection, converting 1.2×2.4m boards into 603×603mm or 595×595mm tiles.

Cutting speed: 15m/min
Cutting knives: Vertical: 3 blades, Horizontal: 5 blades
Overall power: 17.15KW
Technical Specifications
  • Sheet thickness range: 5-30mm
  • Speed adjustment: Frequency conversion synchronous speed regulating
  • Annual capacity: 2-4 million Sq.m
  • Compatible film materials: PVC film, aluminum foils, decorative materials
  • Board materials: PVC baseboard, gypsum board, wood board, sectional board, PVC foam board
  • Stacking mode: 10 layers (4 packages/layer)
  • Lamination options: Double side (front and back simultaneously) or single side
  • Overall dimensions: 56000mm (L) × 9200mm (W)
